EXPLOSION-PROOF FAN-CBF(BAF\BZF51)SERIES
-
-
The CBF (BAF / BZF51) Series Explosion-Proof Axial Fan is designed for safe and efficient ventilation in hazardous environments containing flammable gases, vapors, or dust. Built to meet strict explosion-proof standards, this fan is ideal for oil & gas facilities, chemical plants, paint workshops, warehouses, and marine applications.
-
Explosion-Proof Safety – Certified explosion-proof motor for hazardous areas Zone 1 & Zone 2.
-
High Airflow Performance – Large air volume, stable pressure, and efficient ventilation.
-
Energy-Efficient Motor – Low power consumption with continuous-duty capability.
-
Multiple Installation Options – Can be mounted on stands, walls, or ducts.
-

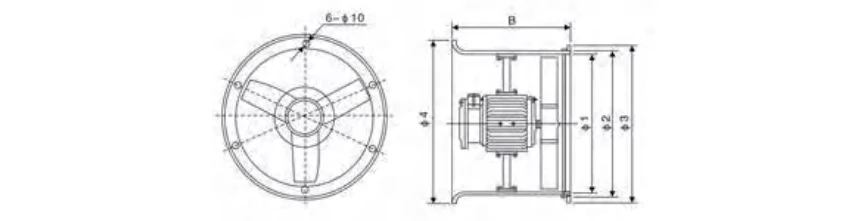

Product Size (Unit: mm)
| Model | B | Φ1 | Φ2 | Φ3 | Φ4 |
|---|---|---|---|---|---|
| CBF-300 | 330 | 305 | 327 | 350 | 360 |
| CBF-400 | 330 | 405 | 428 | 455 | 465 |
| CBF-500 | 330 | 505 | 530 | 555 | 565 |
| CBF-600 | 330 | 605 | 630 | 655 | 665 |
| CBF-700 | 450 | 710 | 738 | 766 | 766 |
| CBF-750 | 450 | 755 | 778 | 808 | 808 |
Parameter table:
| Model | Size (mm) |
Power (KW) |
Speed (r/min) |
Airflow (m³/h) |
Cable Outer Diameter Thread (mm/G") |
Inlet Pipe Thread | Rated Voltage (V) |
|---|---|---|---|---|---|---|---|
| CBF-300 | 300 | 0.18 | 1450 | 2280 | Φ10 - Φ14 | G3/4" | Three-Phase380 Single-Phase220 |
| CBF-400 | 400 | 0.37 | 1450 | 2880 | Φ10 - Φ14 | G3/4" | Three-Phase380 Single-Phase220 |
| CBF-500 | 500 | 0.55 | 1450 | 5700 | Φ10 - Φ14 | G3/4" | Three-Phase380 Single-Phase220 |
| CBF-600 | 600 | 0.75 | 1450 | 8700 | Φ10 - Φ14 | G3/4" | Three-Phase380 Single-Phase220 |
| CBF-700 | 700 | 1.1 | 1450 | 10200 | Φ10 - Φ14 | G3/4" | Three-Phase380 |
| CBF-750 | 750 | 1.5 | 1450 | 15300 | Φ10 - Φ14 | G3/4" | Three-Phase380 |
