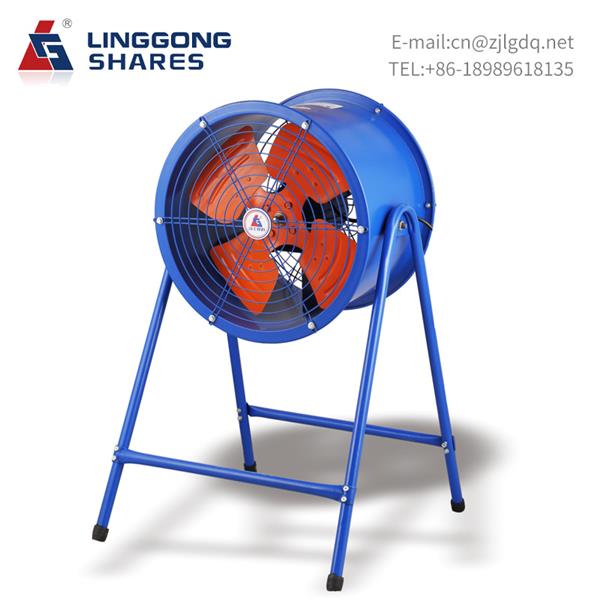

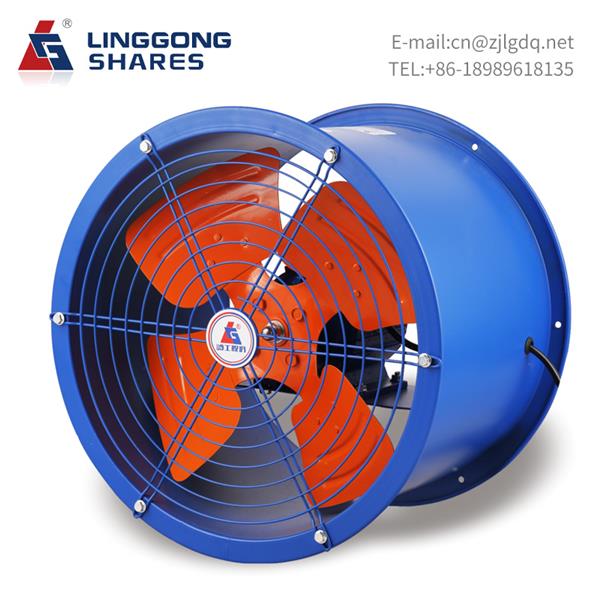

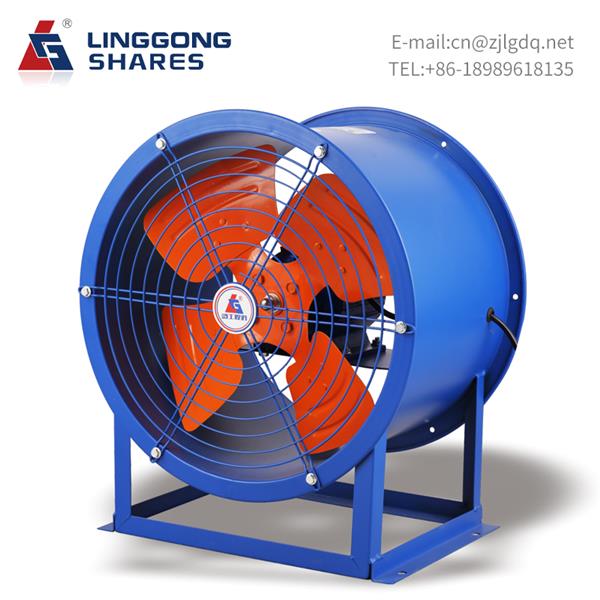

SF LOW NOISE AXIAL FAN

  1. SF Series Big Axial Fan
    High-performance axial fan designed for large-scale ventilation.

  2. Efficient airflow with low energy consumption for cost savings.

  3. Robust construction ensures durability in industrial environments.

  4. Quiet operation minimizes noise pollution during use.

  5. Easy installation and maintenance for long-term reliability

Enquiry Catalog

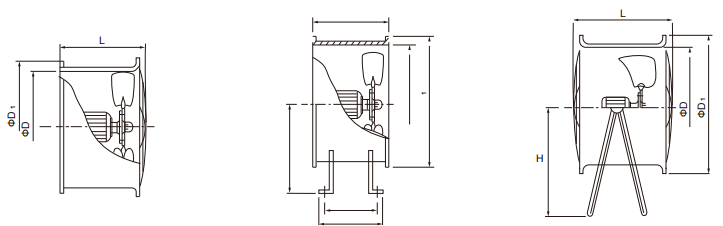

Parameter table:

Model D D1 D2 D3 L1 L2 L3 H1 H2 n-d1 A B d2
2 210 230 255 / 235 / / 1350 / 6-7 140 256 9
2.5 260 290 310 345 260 270 280 183 470 6-9 200 282 9
3 310 340 360 395 260 280 300 197 470 6-9 250 282 9
3.5 362 392 420 440 325 350 390 238 460 6-9 290 352 9
4 412 440 472 500 340 370 420 273 525 6-9 340 365 9
4.5 462 490 522 560 340 370 400 298 525 6-9 340 365 9
5 512 542 572 600 350 380 450 317 630 6-9 430 378 9
5.5 562 592 625 670 450 480 520 345 630 6-9 434 478 10
6 612 646 690 690 500 530 580 400 685 8-10 500 528 12
7 720 750 790 810 535 570 620 460 770 8-12 540 593 14
8 825 865 905 920 600 640 690 551 870 8-12 630 658 14
10 1030 1075 1110 / 805 / / 682 / 8-13 800 860 14

Various product parameters:

Model Power (kW) Voltage (V) Speed (r/min) Airflow (m³/h) Pressure (Pa) Noise (dB/A)
SF2-2 0.12 38 2800 1300 140 62
SF2-2R 0.12 220 2800 1300 140 62
SF2-4 0.06 380 1450 600 20 57
SF2-4R 0.06 220 1450 600 20 57
SF2.5-2 0.25 380 2800 2100 215 65
SF2.5-2R 0.25 220 2800 2100 215 65
SF2.5-4 0.09 380 1450 1000 35 59
SF2.5-4R 0.09 220 1450 1000 35 59
SF3-2 0.37 380 2800 3000 230 68
SF3-2R 0.37 220 2800 3000 230 68
SF3-4 0.12 380 4150 2000 59 61
SF3-4R 0.12 220 4150 2000 59 61
SF3.5-2 0.75 380 2800 6000 260 70
SF3.5-2R 0.75 220 2800 6000 260 70
SF3.5-4 0.25 380 1450 4000 100 63
SF3.5-4R 0.25 220 1450 4000 100 63
SF4-4 0.55 380 1450 5870 149 72
SF4-4R 0.55 220 1450 5870 149 72
SF4-2 1.5 380 2880 10000 170 80
SF4-2R 1.5 220 2800 10000 170 80
SF5-4 0.57 380 1450 10000 200 74
SF5-4R 0.73 220 1450 10000 170 74
SF5-6 2.2 380 960 7700 120 66
SF6-4 1.1 380 1450 18700 300 80
SF6-6 3.0 380 960 14500 180 75
SF7-4 2.2 380 1450 24500 350 85
SF7-6 3 380 960 21500 210 80
SF8-4 2.2 380 1450 37200 235 88
SF8-6 3 380 960 28000 196 82
SF10-6 4 380 960 50000 260 88
