KTJ CABINET SERIES

  1. Designed specifically for high-demand environments such as commercial kitchens, central air conditioning systems, and large shopping malls, providing a one-stop solution for ventilation and purification issues.
  2. Through multi-layer filtration and centrifugation technology, the removal rate of smoke/particulate matter is high.
  3. Flexible installation: supports ceiling fixing or chain hanging, adaptable to different spatial structures.
  4. Durable design: all-metal body with copper core motor, resistant to corrosion and long service life.
  5. Modular structure: quick-release design of components such as filters and motors can reduce maintenance costs.

Enquiry Catalog

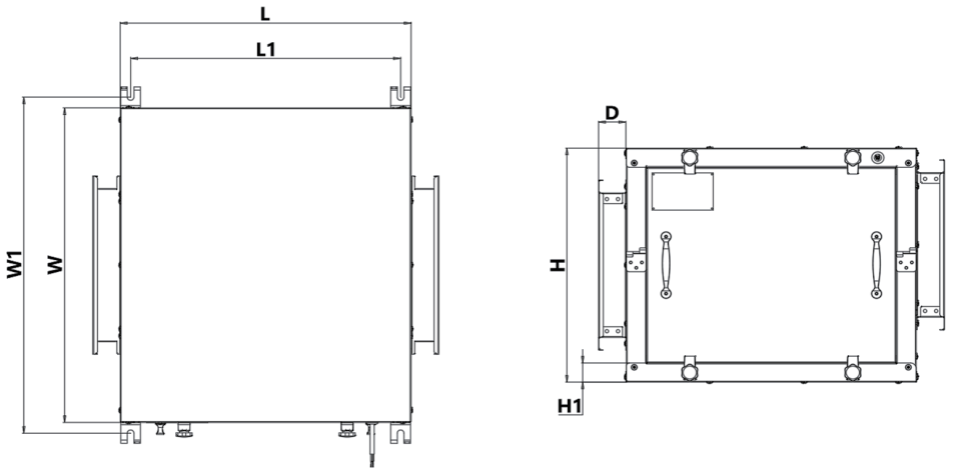

PRODUCT SIZE (unit: mm)

Model L L1 W W1 H H1 D1 Air Inlet Size (L*W) Air Outlet Size (L*W)
KTJ23 - 20D 490 452 490 530 372 36 50 270x265 350x312
KTJ23 - 26D 490 452 490 530 372 36 50 300x280 430x312
KTJ23 - 31D 524 486 592 632 440 36 50 335x320 335x320
KTJ23 - 41D 524 486 592 632 440 36 50 335x320 550x380
KTJ23 - 20 490 452 490 530 372 36 50 270x265 350x312
KTJ23 - 26 490 452 490 530 372 36 50 300x280 430x312
KTJ23 - 31 524 486 592 632 440 36 50 335x320 335x320
KTJ23 - 41 524 486 592 632 440 36 50 335x320 550x380
KTJ28 - 51 640 568 700 743 535 36 50 410x358 640x465
KTJ28 - 61 700 628 740 783 600 35 50 400x460 550x460
KTJ31 - 71 700 628 740 783 600 35 50 400x460 550x460
KTJ31 - 81 700 628 780 823 600 35 50 400x460 745x535
KTJ35 - 100 810 738 780 823 665 35 50 440x460 745x535
KTJ35 - 120 810 738 780 823 665 35 50 440x460 745x535
KTJ40 - 150 848 753 947 1067 802 35 50 455x460 835x600
KTJ40 - 200 848 753 947 1067 802 35 50 455x460 835x600

Parameter table:

Model Voltage (V - Hz) Speed (RPM) Power (W) Airflow (m³/h) Static Pressure (Pa) Noise (dB) N.W (Kg)
KTJ23 - 20D 220/50 1350 250 2000 400 55 26
KTJ23 - 26D 220/50 1350 370 2600 420 56 27
KTJ23 - 31D 220/50 1350 550 3100 440 65 33
KTJ23 - 41D 220/50 1350 750 4100 460 65 34
KTJ23 - 20 380/50 1350 250 2000 400 55 25.5
KTJ23 - 26 380/50 1350 370 2600 420 56 26
KTJ23 - 31 380/50 1350 550 3100 440 61 33
KTJ23 - 41 380/50 1350 750 4100 460 65 34
KTJ28 - 51 380/50 940 750 5100 400 67 58.5
KTJ28 - 61 380/50 940 1100 6100 420 68 66
KTJ31 - 71 380/50 940 1500 7100 440 69 70
KTJ31 - 81 380/50 940 1500 8100 461 70 72
KTJ35 - 100 380/50 940 2200 10000 551 71 84.5
KTJ35 - 120 380/50 940 2500 12000 591 72 86.5
KTJ40 - 150 380/50 940 2500 15000 700 75 111
KTJ40 - 200 380/50 940 3000 20000 257 77 128

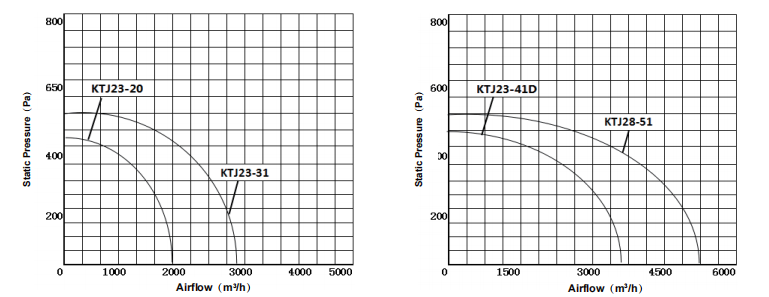

Curves:
