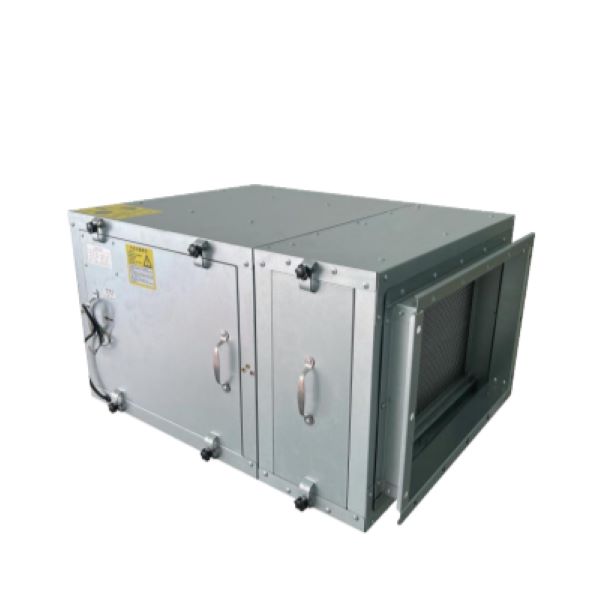

KTJ Filter Series

  1. Reliable Air Filtration & Ventilation Solution.The KTJ Filter Series combines a powerful centrifugal fan with multi-stage filtration, delivering clean and fresh air for a variety of commercial and industrial applications.
  2. Dual filtration: pre-– Equipped with both primary and intermediate filters for efficient removal of dust and particulate matter, ensuring consistently clean air.
  3. Energy saving– Optimized fan design enables low power consumption, significantly reducing energy costs.
  4. Low-Noise Operation – Operating noise as low as 43 dB, ideal for noise-sensitive environments.
  5. High Cost-Performance Ratio – Durable metal housing minimizes maintenance costs, with multiple models available to meet diverse application needs.
  6. Compact Structure – Modular design allows for easy installation and minimal space requirement.

Enquiry Catalog

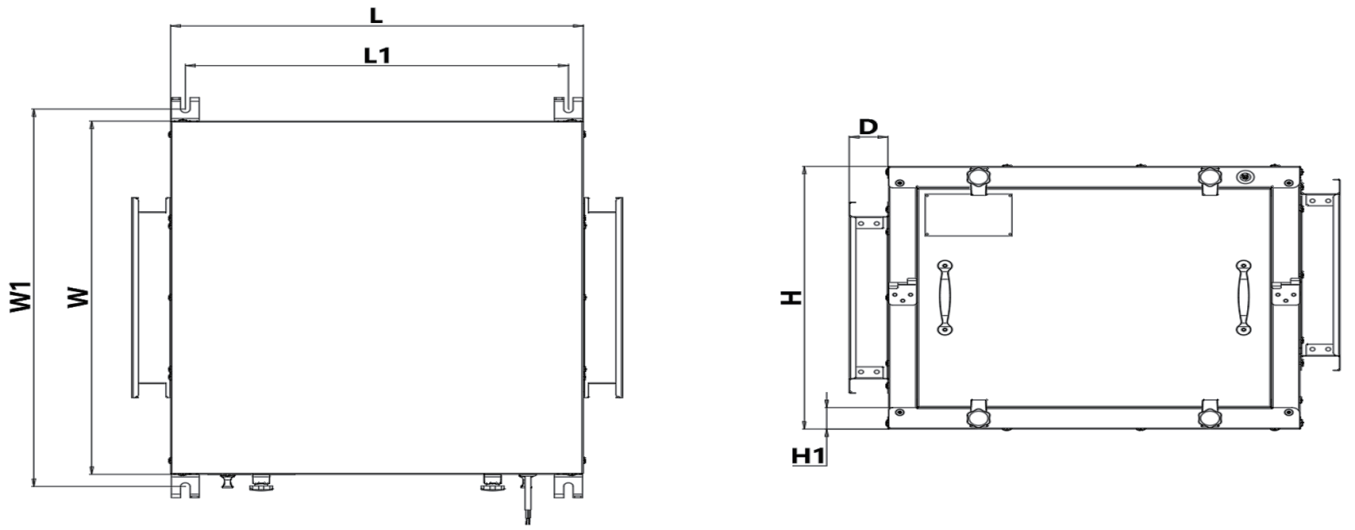

PRODUCT SIZE (unit: mm)

Model L L1 L2 W W1 W2 H H1 Air Inlet Size
(L*W)		 Air Outlet Size
(L*W)
KTJ22-20DG 719 452 490 530 372 36 440 50 270x265 430x312
KTJ23-31DG 753 524 592 632 440 36 440 50 335x320 550x380
KTJ23-41DG 753 524 592 632 440 36 650 50 335x320 550x380
KTJ28-51G 869 568 700 743 535 35 650 50 410x358 640x465
KTJ28-61G 929 628 740 783 600 35 650 50 400x460 550x460

Parameter table:

Model Voltage
(V-Hz)		 Speed Power
(W)		 Airflow
(m³/h)		 Static Pressure
(Pa)		 Noise
(dB)		 N.W
(Kg)
KTJ22-20DG 220/380-50 250 250 2000 430 1340 32
KTJ23-31DG 220/380-50 550 550 3100 440 1340 41
KTJ23-41DG 220/380-50 750 7507 4100 460 1340 43
KTJ28-51G 380-50 750 50 5100 300 940 60
KTJ28-61G 380-50 1100 1100 6100 410 940 70.3

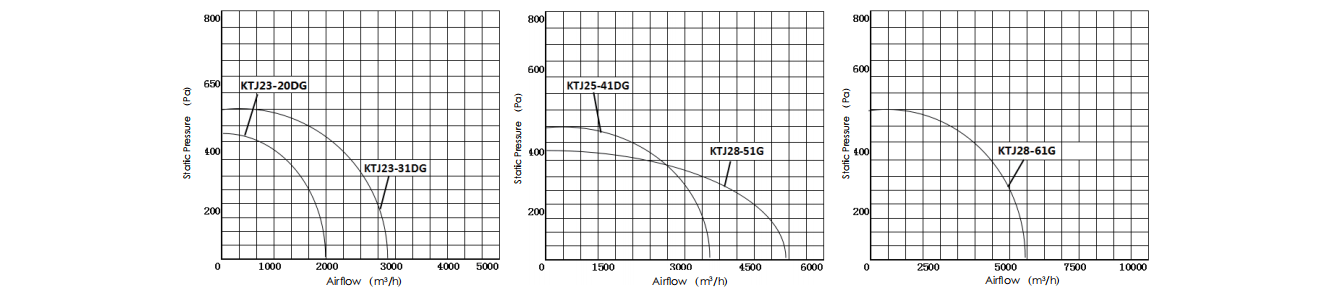

Curves:
