CENTRIFUGAL AIR CURTAIN SERIES
- Efficient air isolation, centrifugal fan design, strong and uniform wind force, forming a stable air barrier, effectively preventing hot and cold air exchange, reducing air conditioning energy consumption, energy saving and environmental protection.
- High performance, stable operation, low noise, no impact on the indoor environment.
- Wide range of applications
Commercial places: shopping malls, supermarkets, hotels, restaurants, banks, etc. Industrial Sites: Warehouses, factories, logistics centers, and other environments that require frequent door opening and closing. Public Facilities: Hospitals, subway stations, airports, and other areas where the air needs to be kept clean. - Economical and practical, cost-effective
Compared with traditional air curtains, the energy consumption is lower, and long-term use can save electricity bills. The construction is robust and durable, with low maintenance costs and a long service life. - Flexible installation: Can be wall-mounted or hoisted to adapt to different space needs.
- Easy to operate: Supports multi-speed wind speed adjustment to meet the needs of different seasons.

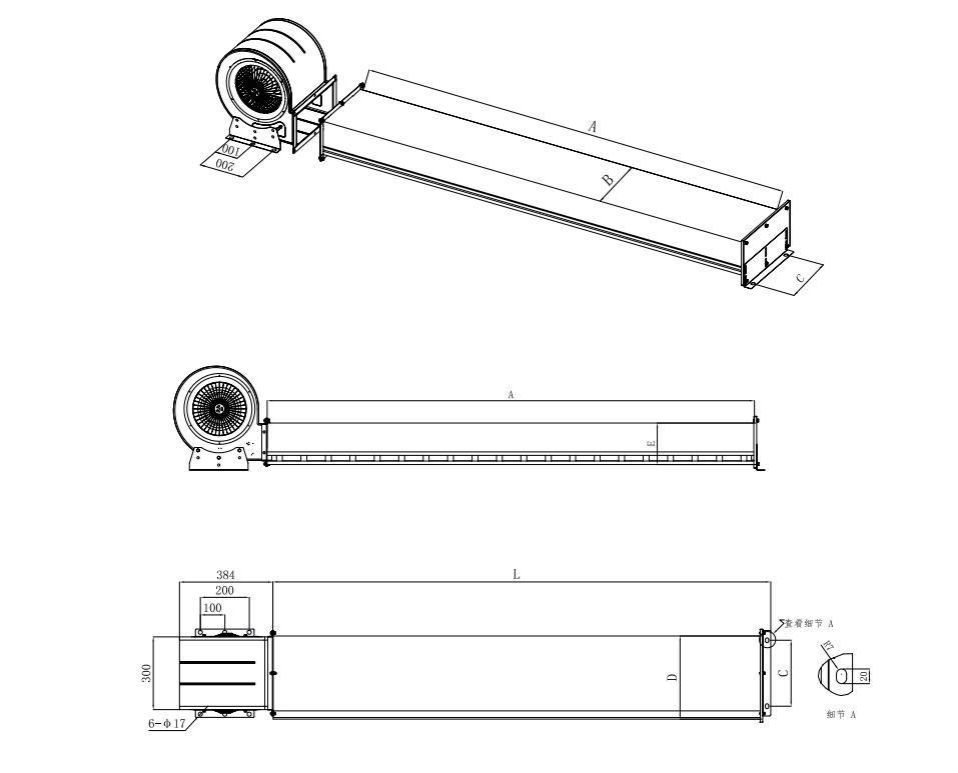

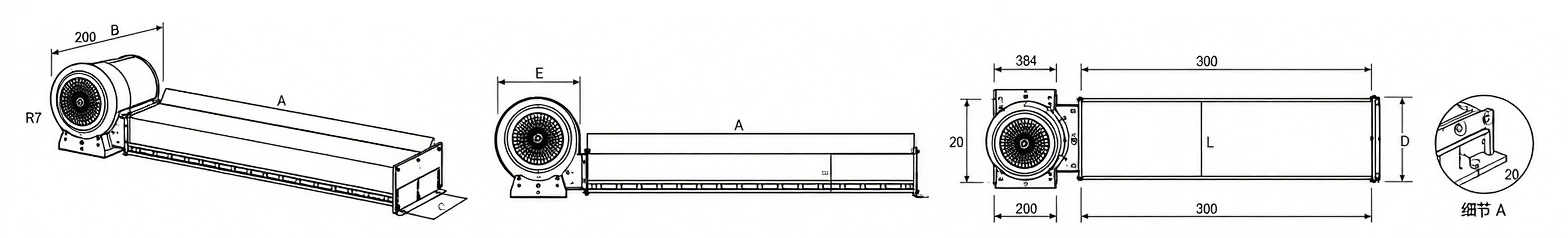

Three views of product specifications:

Parameter table:
Dimensions (mm)
Model | L | A | B | C | D | E |
---|---|---|---|---|---|---|
LKFM-25-09 | 942 | 900 | 305 | 270 | 340 | 170 |
LKFM-25-12 | 1242 | 1200 | 305 | 270 | 340 | 170 |
LKFM-25-15 | 1542 | 1500 | 305 | 270 | 340 | 170 |
LKFM-25-18 | 1842 | 1800 | 305 | 270 | 340 | 170 |
LKFM-25-20 | 2042 | 2000 | 305 | 270 | 340 | 170 |
LKFM-25-22 | 2242 | 2200 | 305 | 270 | 340 | 170 |
LKFM-25-24 | 2442 | 2400 | 305 | 270 | 340 | 170 |
LKFM-25-25 | 2542 | 2500 | 305 | 270 | 340 | 170 |
Model | Dimensions (mm) | Air Speed (m/s) | Voltage (V) | Airflow (m³/h) | Noise (dB) | Power (KW) | Weight (KGS) |
---|---|---|---|---|---|---|---|
LKFM-25-09 | 1326×364×426 | 20 | 380/220 | 1250 | 70 | 0.75 | 25 |
LKFM-25-12 | 1626×364×426 | 19 | 380/220 | 1250 | 70 | 0.75 | 27 |
LKFM-25-15 | 1926×364×426 | 18 | 380/220 | 1400 | 70 | 0.75 | 29 |
LKFM-25-18 | 2226×364×426 | 17 | 380/220 | 1650 | 70 | 0.75 | 31.5 |
LKFM-25-20 | 2426×364×426 | 16.5 | 380/220 | 1850 | 70 | 0.75 | 33.5 |
LKFM-25-22 | 2626×364×426 | 15.5 | 380/220 | 2050 | 70 | 0.75 | 35.5 |
LKFM-25-24 | 2826×364×426 | 15 | 380/220 | 2250 | 70 | 0.75 | 37.5 |
LKFM-25-25 | 2926×364×426 | 14 | 380/220 | 2250 | 70 | 0.75 | 39 |
