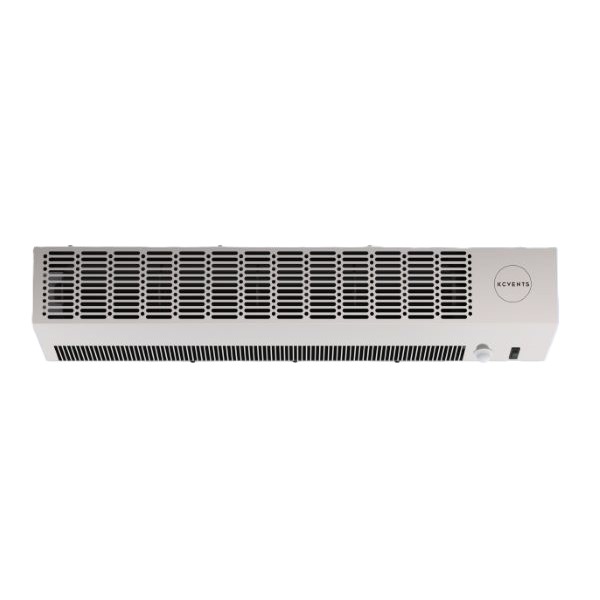

Elevator Air Curtain
- Elevator air curtains are intelligent and energy-efficient ventilation solutions designed specifically for elevators. It is equipped with intelligent motion sensing technology that ensures optimal comfort while maximizing energy savings.
- Intelligent control: automatically opens when passengers enter the elevator. The elevator automatically shuts off when it is empty, and the delayed shutdown function can be adjusted, saving energy.
- Comfortable Airflow Design: The optimized airflow angle ensures comfortable and even air distribution, allowing for effective ventilation and air circulation, keeping you cool even in summer.
- Reliable Performance:Equipped with a high-speed pure copper motor, tested for continuous operation up to 8,000 hours without failure.
- Durability:Constructed with centrifugal hot-dip galvanized steel impeller for safety and long-lasting operation.
Parameter table:(Installation height: 2.5-3 meters)
| Model | Dimensions (mm) | Rated Voltage (V~) | Rated Frequency (Hz) | Input Power (W) | Wind Speed (m/s) | Air Volume (m³/h) | Noise (dB) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| FW-125-08DT (Button Switch) | 800×146×173 | 220 | 50 | 80 | 7.5 | 860 | ≤49 | 5 |
| FW-125-08DT (Sensor Switch) | 800×146×173 | 220 | 50 | 80 | 7.5 | 860 | ≤49 | 5 |
| FW-125-08DT (Stainless Steel Sensor Switch) | 800×146×173 | 220 | 50 | 80 | 7.5 | 860 | ≤49 | 5 |
