Wind cabinet

  1. Designed specifically for high-demand environments such as commercial kitchens, central air conditioning systems, and large shopping malls, providing a one-stop solution for ventilation and purification issues.
  2. Through multi-layer filtration and centrifugation technology, the removal rate of smoke/particulate matter is high.

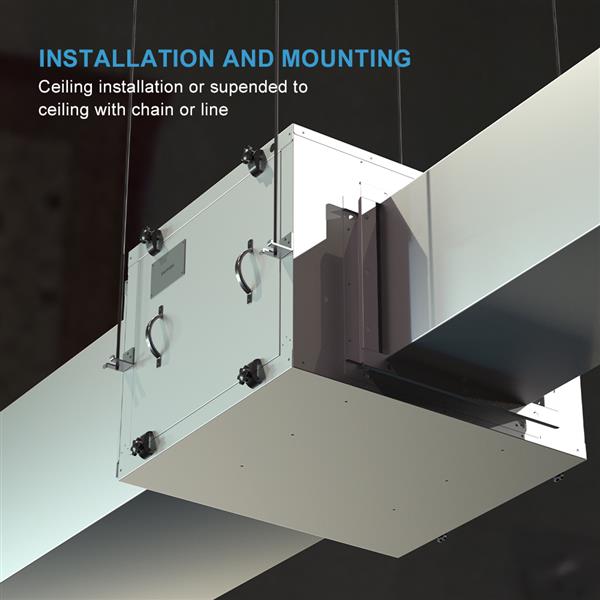

  3. Flexible installation: supports ceiling fixing or chain hanging, adaptable to different spatial structures.

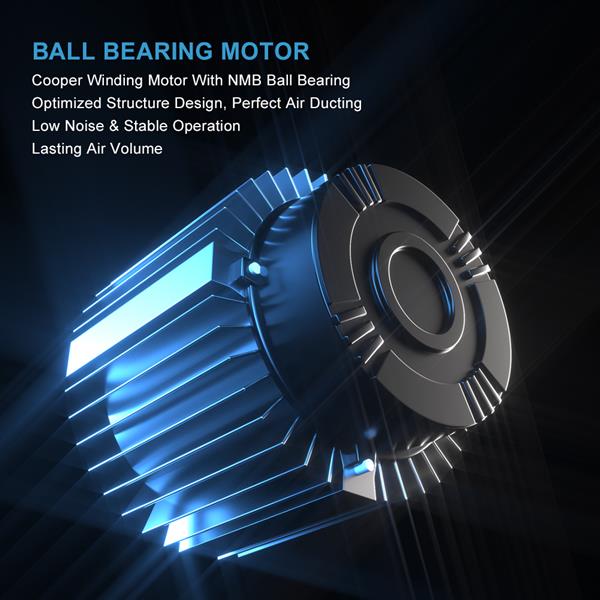

  4. Durable design: all-metal body with copper core motor, resistant to corrosion and long service life.

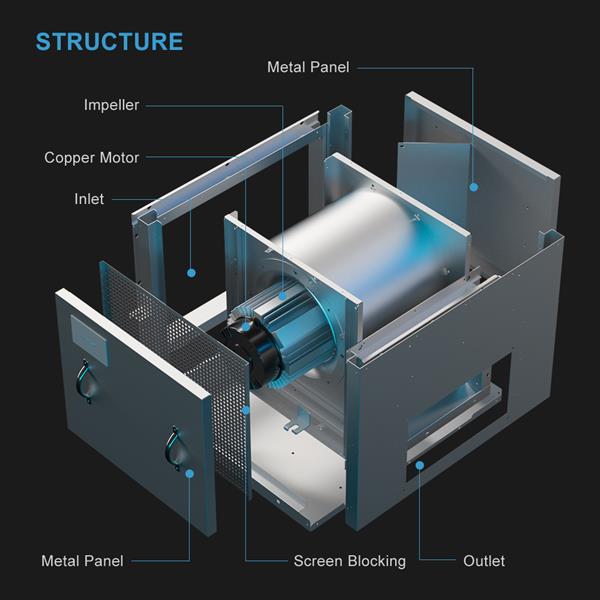

  5. Modular structure: quick-release design of components such as filters and motors can reduce maintenance costs.

Enquiry Catalog

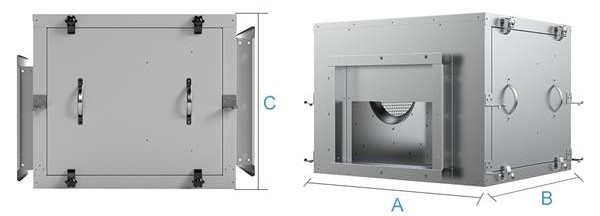

PRODUCT SIZE (unit: mm)

Model A B C Inlet Size Outlet Size Flange Width
KTJ22 - 20(D) 764 462 382 240*230 240*230 35
KTJ23 - 31(D) 732 590 438 498*330 283*270 35
KTJ23 - 41(D) 764 590 438 498*330 325*270 35
KTJ28 - 51 764 521 420 418*308 350*280 35
KJ32 - 61 890 720 490 578*415 413*275 35
KTJ32 - 81 810 740 780 695*475 408*464 35
KTJ35 - 100 920 785 667 758*555 445*445 35
KTJ35 - 120 920 885 667 858*558 445*445 35

Parameter table:

Model Voltage Power Air volume Static Pressure Speed Noise
KTJ22 - 20D 220V - 50Hz 300W 2000m³/h 390Pa 1400rpm 55dB
KTJ22 - 26D 220V - 50Hz 370W 2600m³/h 400Pa 1400rpm 57dB
KTJ23 - 31D 220V - 50Hz 550W 3100m³/h 440Pa 1400rpm 61dB
KTJ25 - 41D 220V - 50Hz 750W 4100m³/h 460Pa 1400rpm 65dB
KTJ22 - 20 380V - 50Hz 300W 2000m³/h 390Pa 1400rpm 55dB
KTJ22 - 26 380V - 50Hz 370W 2600m³/h 400Pa 1400rpm 57dB
KTJ23 - 31 380V - 50Hz 550W 3100m³/h 440Pa 1400rpm 61dB
KTJ25 - 41 380V - 50Hz 750W 4100m³/h 460Pa 1400rpm 65dB
KTJ28 - 51 380V - 50Hz 750W 5100m³/h 300Pa 940rpm 67dB
KTJ32 - 61 380V - 50Hz 1100W 6100m³/h 410Pa 940rpm 68dB
KTJ32 - 81 380V - 50Hz 1500W 8100m³/h 461Pa 940rpm 69dB
KTJ35 - 100 380V - 50Hz 2200W 10000m³/h 551Pa 940rpm 70dB
KTJ35 - 120 380V - 50Hz 2500W 12000m³/h 591Pa 940rpm 71dB
