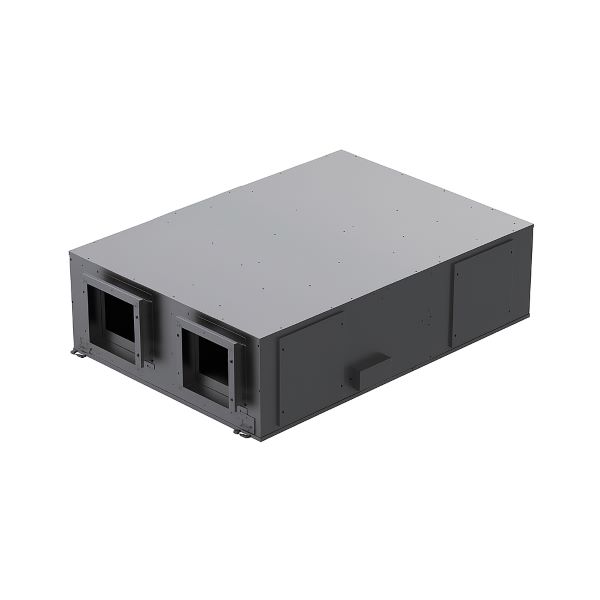

Commercial Heat Recovery Unit

  1. Our Commercial Heat Recovery Unit is designed to deliver superior ventilation performance with energy-saving heat exchange technology. Ideal for office buildings, commercial complexes, schools, and hospitals.
  2. High Efficiency Heat Recovery:Equipped with a counterflow or crossflow heat exchanger to recover thermal energy from exhaust air, improving indoor air quality while reducing HVAC energy costs.
  3. Low Noise Operation:Advanced fan design and internal insulation ensure quiet operation (as low as 35 dB), ideal for indoor commercial environments.
  4. Smart Touch Control Panel:Integrated touchscreen controller allows real-time monitoring and adjustment of airflow, temperature, and system status.
  5. GFilter Options Available:Compatible with multiple air filtration levels (PM2.5 filters, HEPA, etc.) to meet clean air standards.

Enquiry Catalog Manual

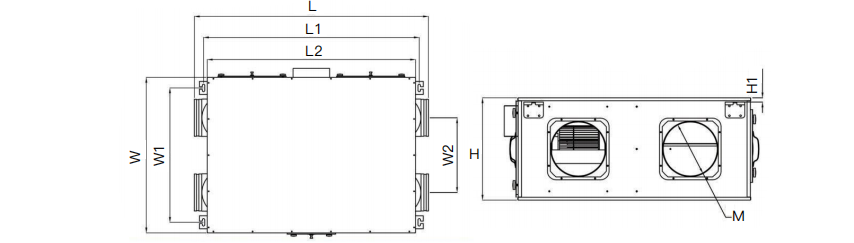

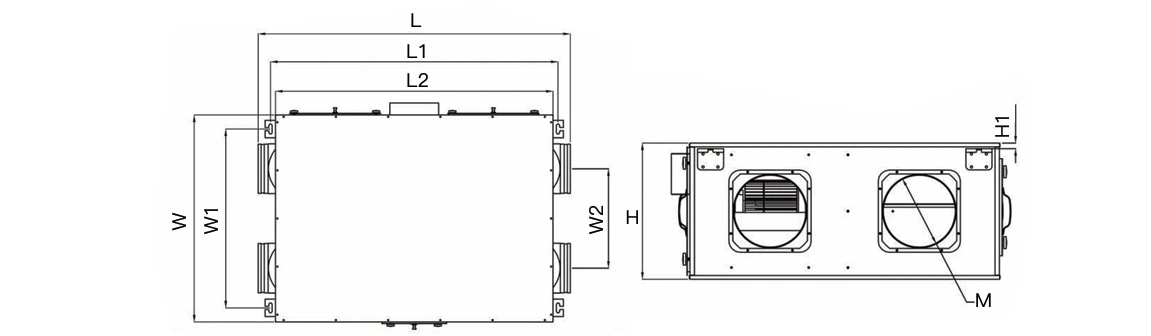

Dimensions (unit:mm):

Model L L1 L2 W W1 W2 H H1 M
KCQR - 1000 1255 1156 1116 832 719 400 365 15 200
KCQR - 1500 1255 1156 1116 832 719 400 365 15 250
KCQR - 2000 1299 1200 1160 832 734 400 380 15 250
KCQR - 2500 1478 1379 1338 975 877 485 421 15 250

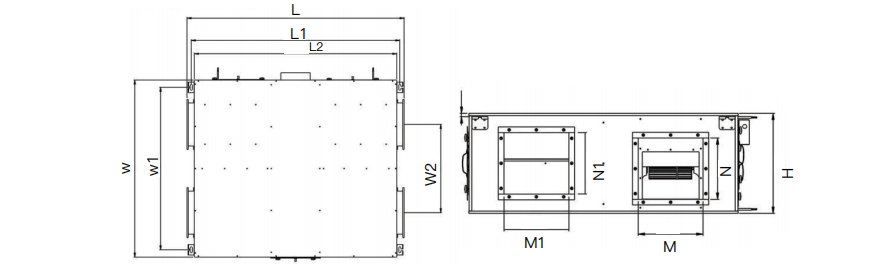

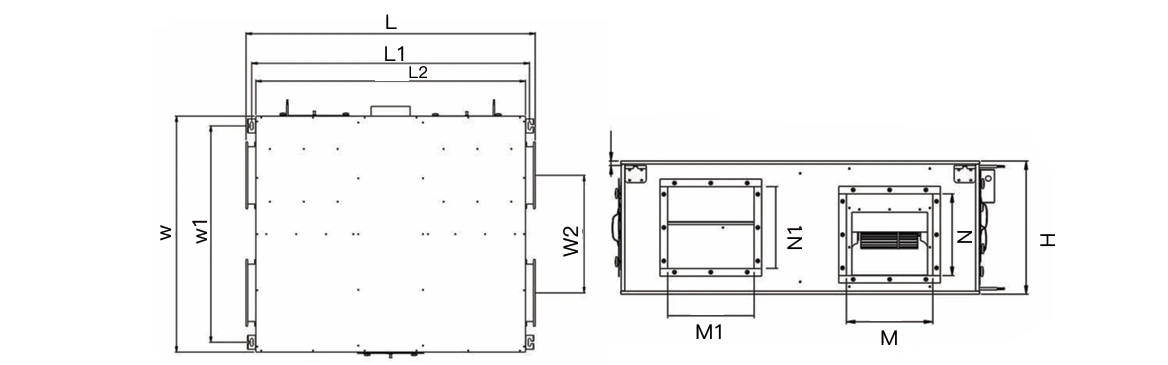

Dimensions (unit:mm):

Model L L1 L2 W W1 W2 H H1 M×N M1×N1
KCQR - 3000 1452 1395 1355 1185 1087 590 440 15 285×270 380×262
KCQR - 4000 1452 1395 1355 1185 1087 590 440 15 285×270 380×262
KCQR - 5000 2009 1845 1912 1201 1261 5365 650 50 350×410 350×410
KCQR - 6000 2009 1845 1912 1201 1261 36 650 50 350×410 350×410
KCQR - 8000 2009 1845 1912 1201 1261 536 650 50 350×410 350×410

Parameter table:

Model Voltage (V - Hz) Speed Power (W) Airflow (m³/h) Static Pressure (Pa) Noise (dB) Exchange Efficiency - Cooling Exchange Efficiency - Heating Enthalpy Exchange Rate - Cooling Enthalpy Exchange Rate - Heating N.W (Kg)
KCQR - 1000 220 - 50 H/L 600/500 1000/800 245/210 48/46 62/64 58/71 61/65 60/66 66.5
KCQR - 1500 220 - 50 H/L 1100/900 1500/1200 265/230 52/50 63/68 60/72 62/68 60/70 67
KCQR - 2000 220 - 50 H/L 1400/1200 2000/17002 270/245 55/53 64/69 61/73 63/68 60/71 83
KCQR - 2500 220 - 50 / 1600/1400 500/2200 285/255 56/53 64/69 63/76 63/68 60/72 85
KCQR - 3000 220/380 - 50 / 1900 3000 275 57 69 79 68 68 106.5
KCQR - 4000 220/380 - 50 / 2200 4000 305 58 69 79 68 71 107.5
KCQR - 5000 380 - 50 / 3000 5000 320 60 69 79 68 71 164
KCQR - 6000 380 - 50 / 3300 6000 345 62 69 73 68 71 195
KCQR - 8000 380 - 50 / 4400 8000 370 65 70 76 69 72 284

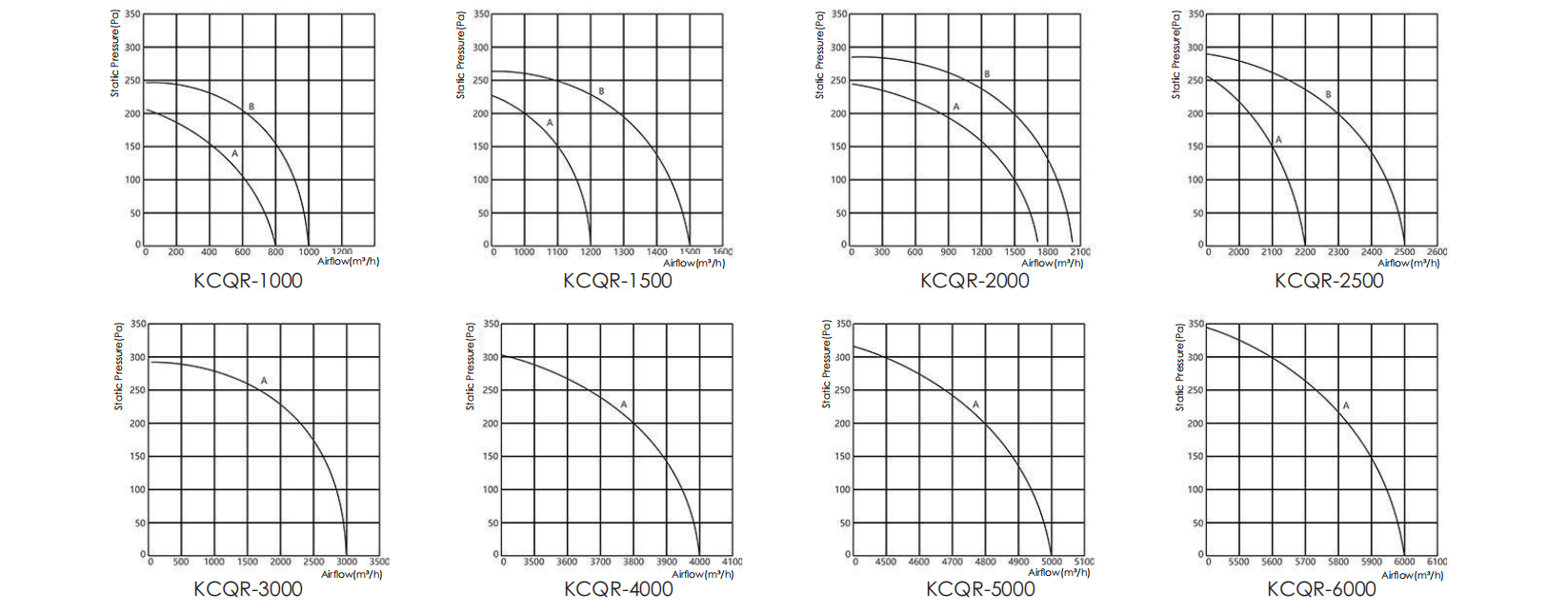

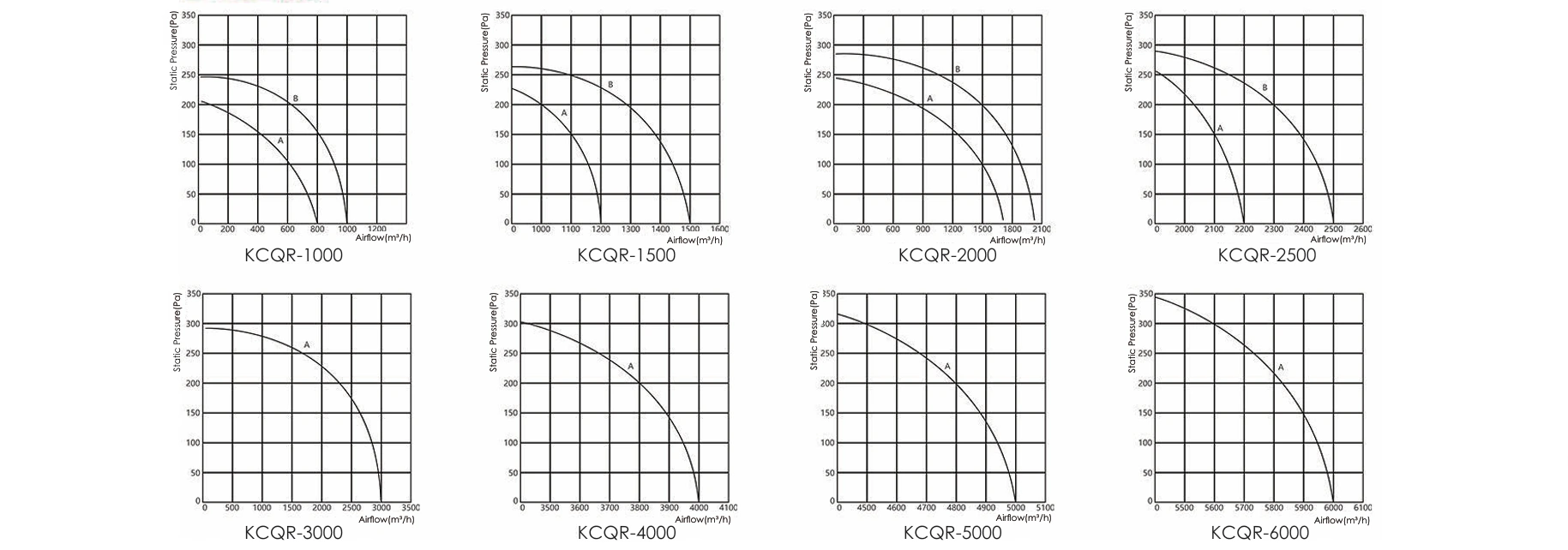

Curves:
