Bathroom, Kitchen and Industrial Exhaust Fans

KCVENTS exhaust fans support local removal of humidity, odors, heat and stale air from bathrooms, kitchens and industrial spaces. Select from the required airflow and installed resistance, then confirm wall opening, noise, controls, power and the applicable local exhaust design.

Showing all 6 results

Choose an exhaust fan from the air that must be removed, the resistance of the outlet path and the installation environment. A bathroom or kitchen retrofit may prioritize compact size and sound; a workshop or agricultural space may require higher airflow, shutter protection and a motor suited to longer duty. Confirm the fan curve, noise, electrical input and mounting dimensions before purchase.

Quick answer

Use a compact EC wall fan for small wet rooms, a shutter fan for high-volume wall exhaust, and a metal square fan when the installation needs a durable industrial housing. Local exhaust rates and make-up air must be checked separately against the applicable code.

Bathroom / kitchen

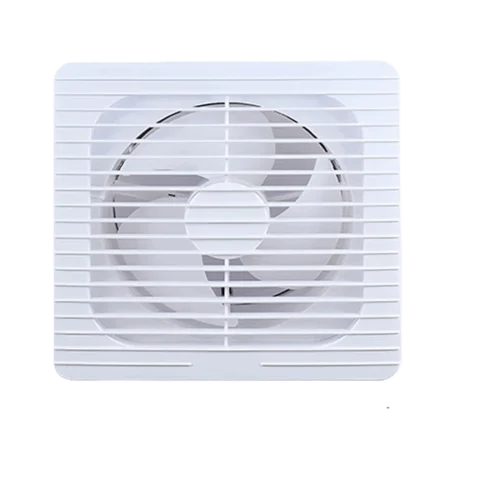

The EC Bathroom Fan page lists a compact wall unit with 4-6 W input and 38-42 dB sound data.

High airflow

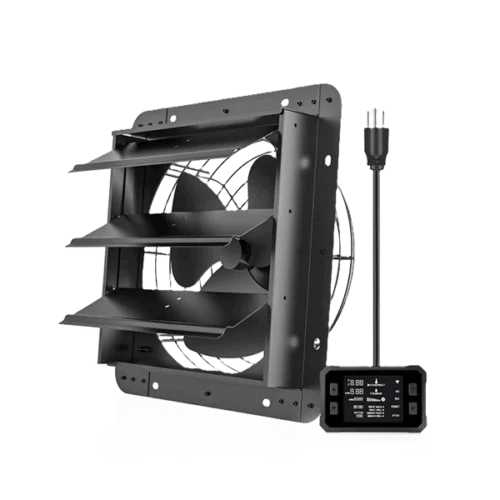

The EC Motor Shutter Exhaust Fan page lists up to 2,560 CFM, PWM speed control and a 100-240 V input.

Industrial wall

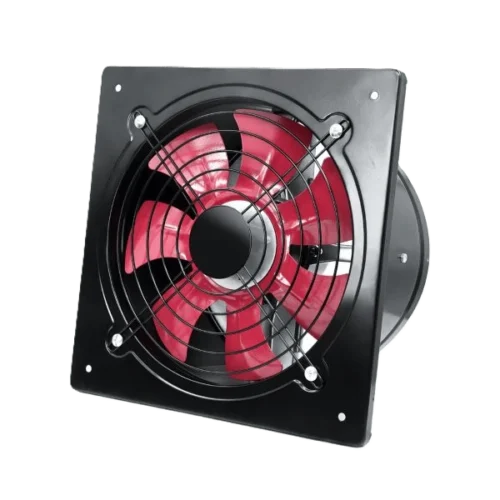

The Metal Square Exhaust Fan uses a metal housing for heat, smoke, humidity and stale-air removal applications.

Representative model paths

Values are taken from the linked product pages and need duty-point confirmation.

Product path Current page evidence Project question
EC Bathroom Fan Lists up to 258 m3/h, 4-6 W and 38-42 dB. Can the compact wall size and noise target fit the room?
EC Motor Shutter Exhaust Fan Lists up to 2,560 CFM, PWM modulation and IP44 shutter construction. What airflow is required after wall, shutter and discharge resistance?
Wall / Window EC Fan Offers 4 and 6 inch configurations, reversible and exhaust-only options. Is a wall or window opening more practical than a duct run?

Specification basis: the linked pages currently state the listed values. Confirm fan performance at the installed resistance, sound test condition, electrical variant, protection rating and local exhaust requirements before ordering.

"Inadequate ventilation can increase indoor pollutant levels by not bringing in enough outdoor air to dilute emissions from indoor sources and by not carrying indoor air pollutants out of the area."

The U.S. ENERGY STAR programme states that ENERGY STAR certified ventilation fans use about 48% less energy than standard models. This is a category-level figure for ENERGY STAR-certified ventilation fans, not a claim about any KCVENTS model; ENERGY STAR status must be verified per model. See the ENERGY STAR source.

Exhaust fan buying questions

Use these answers to separate fan selection from the duct and code design.

Can I select an exhaust fan from room area alone?

No. Room use, pollutant source, required local exhaust, duct resistance and make-up air all affect the selection. Use the applicable local code or engineering brief for the required rate.

Why does static pressure matter for a wall exhaust fan?

Grilles, dampers, ducts and external terminals resist airflow. A fan that looks adequate at free air may deliver less at the installed duty point, so use the fan curve and resistance estimate together.

What is the benefit of an EC motor?

EC motors can support lower power operation and variable speed control, but the actual benefit depends on the selected model, duty point, controller and operating schedule.

What should I send with an RFQ?

Send the room or process, required airflow, duct and wall details, humidity or dust exposure, noise target, voltage, control preference, quantity and required test or compliance documents.

Need a model recommendation?

Send the application, required airflow, wall construction, target market, voltage or plug requirement, certification needs and estimated quantity.

KCVENTS can then confirm the suitable model variant, available controls and the documentation required for your project.
