fresh air ventilation system
Centrifugal Slim Cabinet fan install
Cabinet fan with filter parameter
Acoustic cabinet fan electric machinery
Acoustic cabinet fan
Centrifugal Slim Cabinet fan
Cabinet fan with filter

DPT-J Fresh Air Ventilation


  1. Metal Filter remove large particles, small insects & pollens.Pre-Filter efficiency up to 90%, filters particles such as mold & spores.
  2. HEPA Filter H11 grade efficiency up to 95%, filters such as virus.
  3. Carbon Activated Filter to absorb formaldehyde, benzene, randon & harmful chemical.
  4. Negative Ion Filter attach to positively charged particles in the room, such as dust, bacteria, pollen, smoke, and other allergens.
Enquiry wholesale Specification


Available, depending upon the model, with single phase motors in 2 or 4 poles.

(Mobile terminal:Slide the sheet to the right to see more)

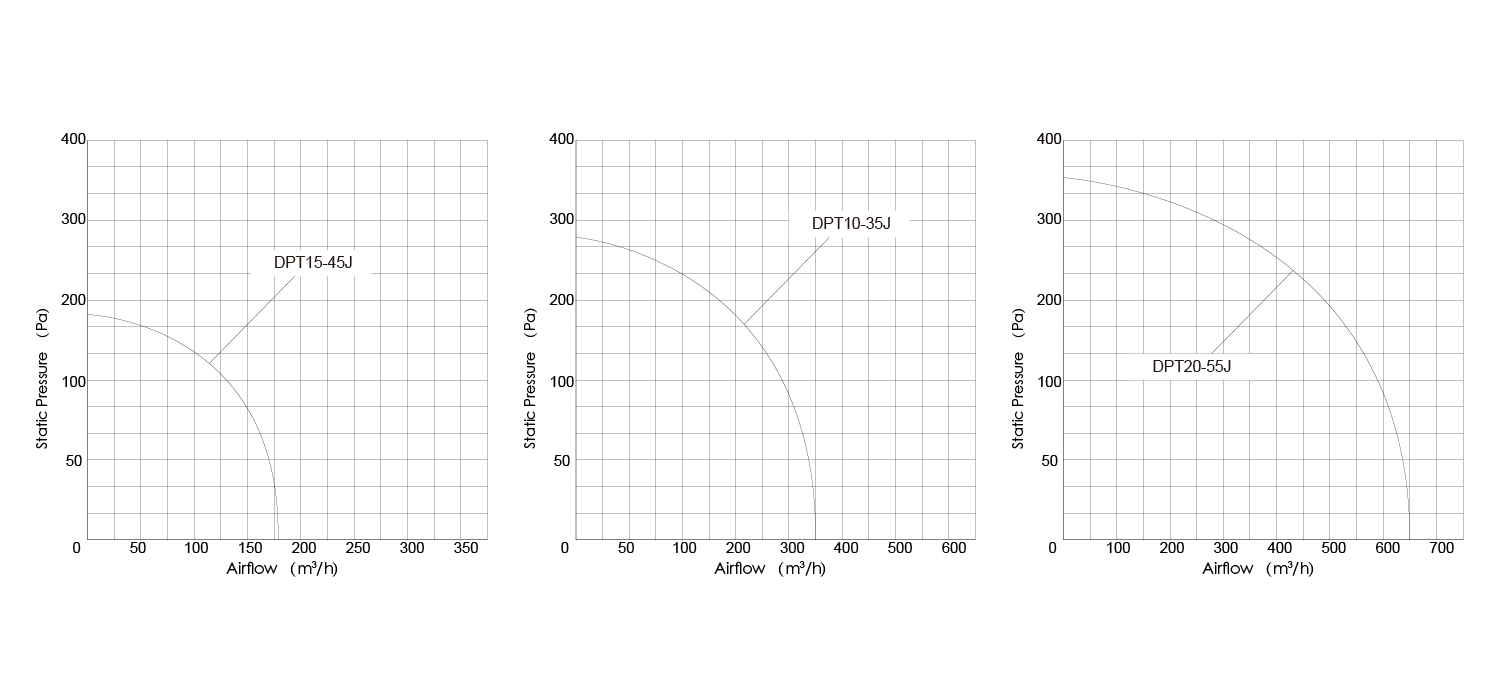

Model Vol/Frequency Speed Power Airfflow Pa Noise Ducting Size
DPT10-35J 220V-50Hz H 45W 160m³/h 192Pa 24db Φ98mm
L 30W 120m³/h 170Pa 21db
DPT15-40J 220V-50Hz H 60W 250m³/h 240Pa 31db Φ146mm
L 50W 200m³/h 200Pa 25db
DPT15-45J 220V-50Hz H 75W 350m³/h 270Pa 35dB Φ146mm
L 55W 290m³/h 250Pa 28dB
DPT20-55J 220V-50Hz H 130W 650m³/h 365Pa 42dB Φ194mm
L 115W 500m³/h 300Pa 38dB

Motors
External rotor motors, IP44, class B, with ball bearings and thermal protection. Electrical supply: Single phase 230V-50Hz.
Working temperature from -20ºC to +40ºC.
On request
Versions protected against corrosion by epoxy paint coating.
Low noise level
Acoustic insulation of 7 mm thickness flame retardant (M1) melamine foam reducing the noise level significantly.
Easy to mount
All models are supplied with four mounting feet to facilitate any ceiling, wall or floor mounting installation.
Installation at any position
Can be mounted in vertical, horizontal or inverted position.

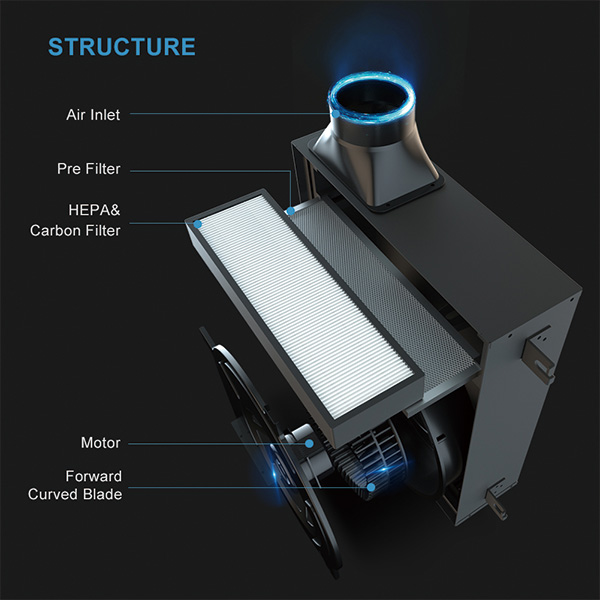

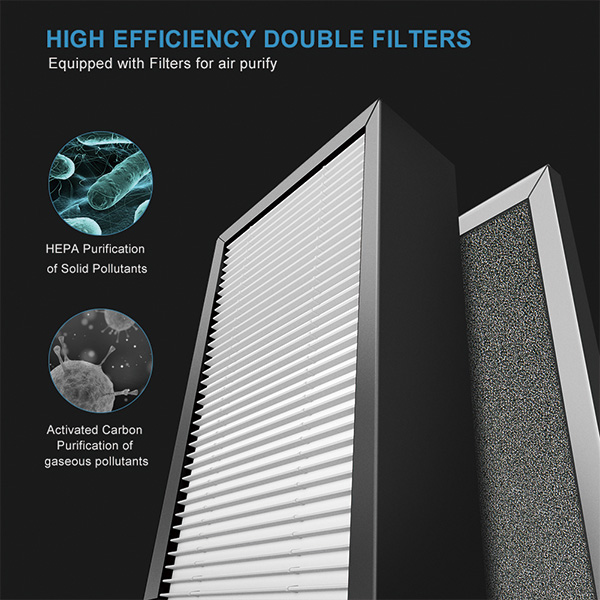

    2 Filters 4 Purification :
  • Primary Effect Filtering Net: Filtering particulate matter, can be washed
  • Activated Carbon Fitler: Decomposes Formaldehyde TVOCs & other Harmful Gas
  • Negative Silver ion Effect Filter: Sterilization and Disinfection
  •  H11 Grade HEPA Filter Net: Filter PM2.5, Viruses, Allergens & others.
Leading Manufacturer For VentilationLeading Manufacturer For VentilationLeading Manufacturer For VentilationLeading Manufacturer For VentilationLeading Manufacturer For Ventilation
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided. EOM acceptable.
KCVENTS has a large experience designing and producing air curtains,air handling units, fan boxes, fan filter units, axial fans, centrifugal fans, mixed flow fans and other special and OEM equipment. We export our products to more than 45 countries worldwide. Loyal to our commitments regarding our customers, our products fulfill the highest standards of quality criteria. We are proud of our highly qualified team composed by master engineers, designers, specialized technicians and skilled professionals, ready to assist you in any questions you may have in design, installation or service maintenance requirements. Air curtains market leading Ventilation product leading Producing +7 years Exporting +45 countries Experimented R+D+i Continuous improving Complete range, all applications University knowledge collabora.
