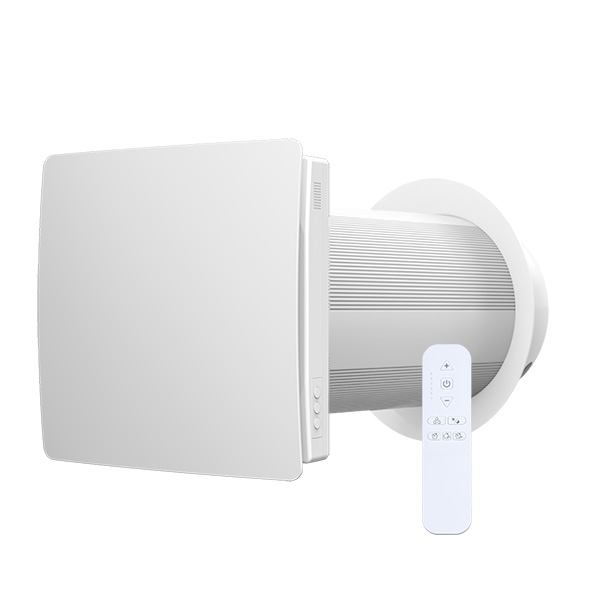

Wall-mounted HEPA Fan VT501-F


  1. Dual filtered air mode, indoor be filled with fresh air for 24 hours.

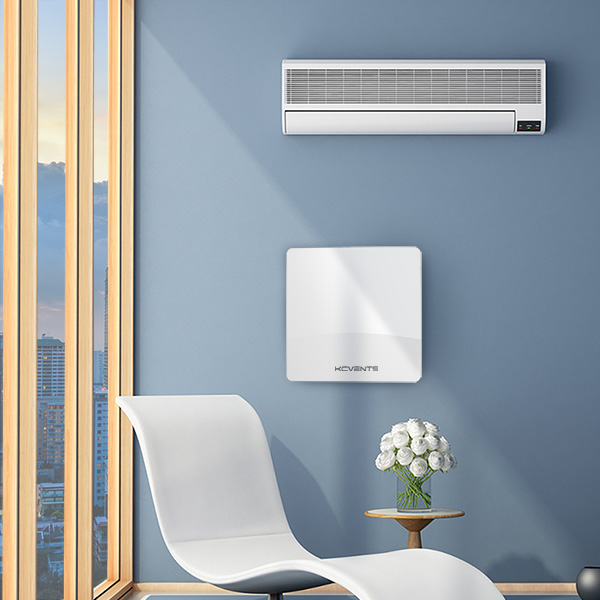

  2. Square fan body, beautiful hang installation,suitable for various kinds of decorating styles.
  3. Purify indoor air, continuous filter PM2.5,formaldehyde etc.
  4. New design for 360° angle intaking air.

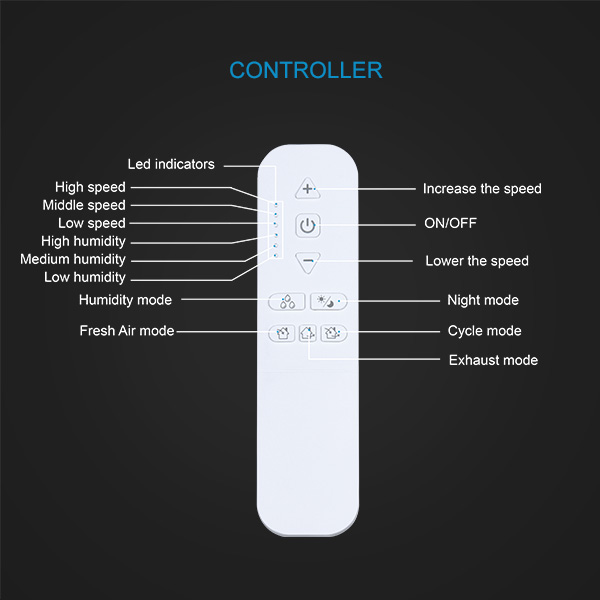

  5. Infrared sensor control, easy operation.
  6. Humidity mode— the fan is controlled by humidity sensor automatically.

Enquiry Catalog Manual

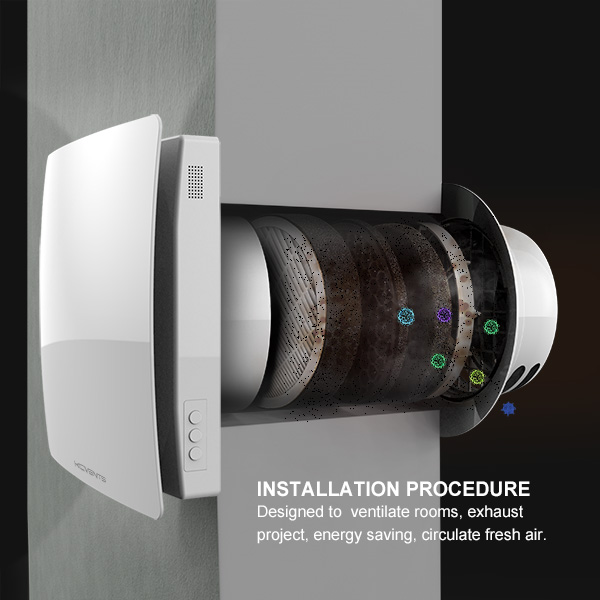

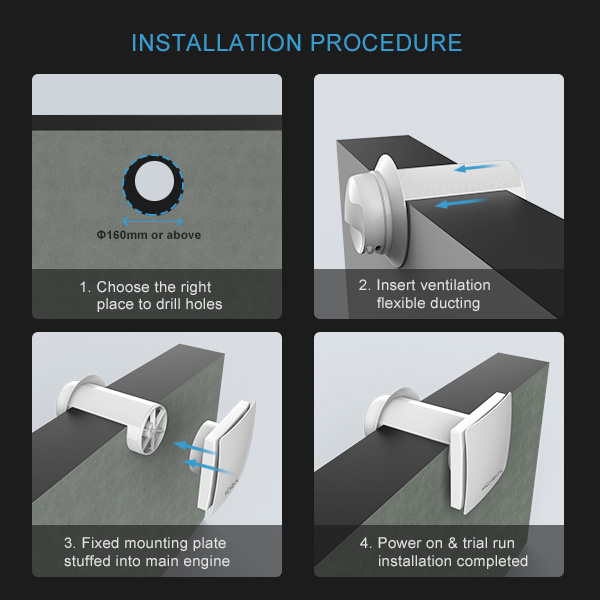

Installation procedure

Designed to ventilate rooms, exhaust project, energy saving, circulate fresh air.

VT501/VT501 - WF/VT501 - MS

Speed Speed
Voltage 12VDC Or 100 - 240V 50 - 60Hz
Ventilator Total Power (W) 2.5 3.0 4.5 8.5
Ventilator Current(A) 0.025 0.030 0.045 0.070
Airflow (m³/h) 20 48 54 60
Speed (RPM) 630 1100 1600 2200
Transported Air Temperature -20°C(-4°F) to +50°C(122°F)
Heat Exchange Efficiency up to 90%
Heat Exchanger core Ceramic

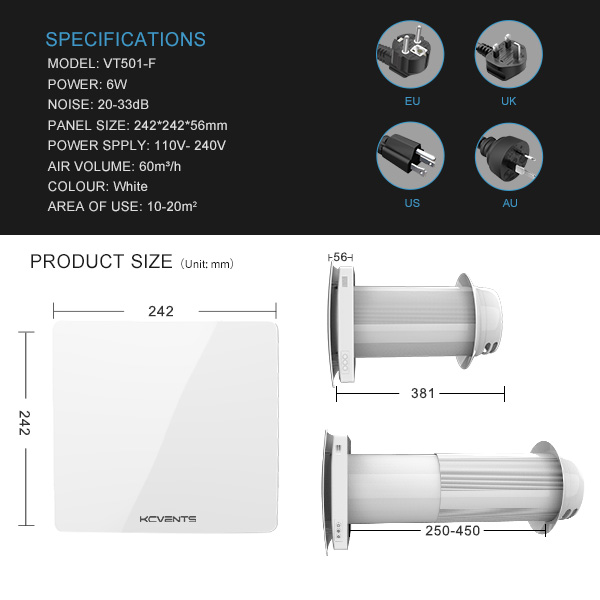

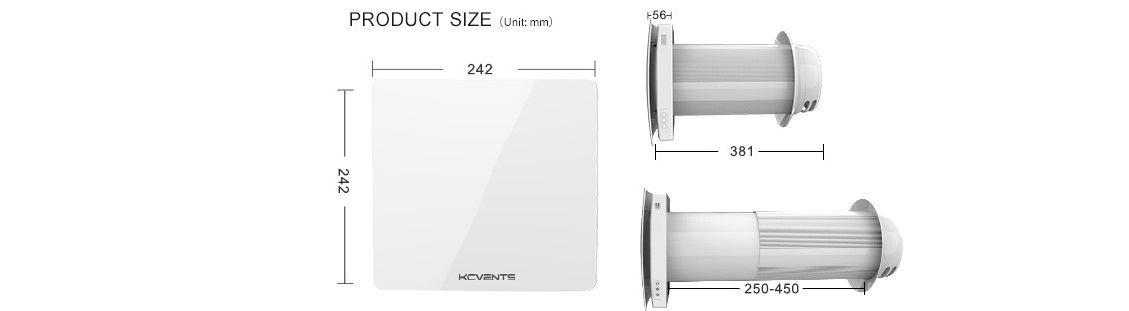

size

Parameter Value
​Diameter Unit​ 160 mm
​Exterior Tube​ 163 mm
​Diameter/Wall Thickness​ Standard: 250 mm - 500 mm
​Installation Tube​​ (can be cut) 250 mm to 500 mm
​Inside Cover​ 242 mm × 242 mm
