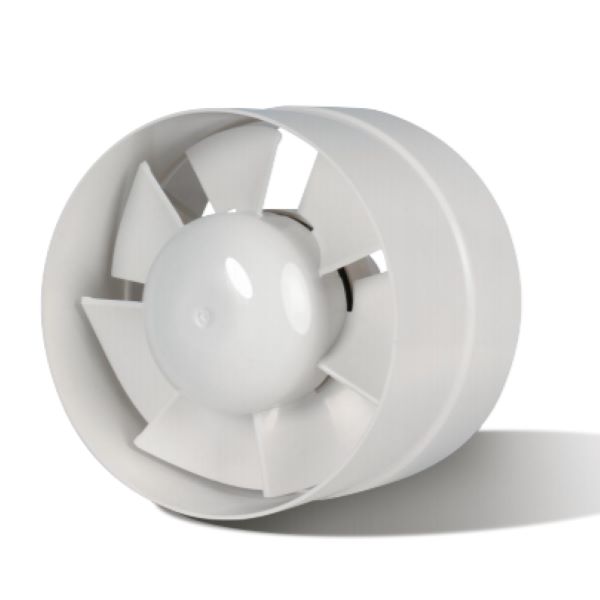

APJ Inline Series
- The APJ Inline Series is a high-performance inline duct fan designed for residential, commercial, and light industrial ventilation systems. Compact yet powerful, this fan ensures efficient airflow through ducts, delivering fresh air while removing stale or contaminated air. Ideal for HVAC systems, grow rooms, bathrooms, kitchens, offices, and other ventilation applications.
- High Airflow Efficiency – Optimized impeller design provides strong airflow with low energy consumption.
- Compact & Lightweight – Easy to install even in tight duct spaces.
- Durable Construction – Made from high-quality materials for long service life.
- Low Noise Operation – Quiet performance suitable for residential and office use.
- Multiple Sizes Available – Fits 4”, 5”, and 6” ducts to meet different ventilation needs.

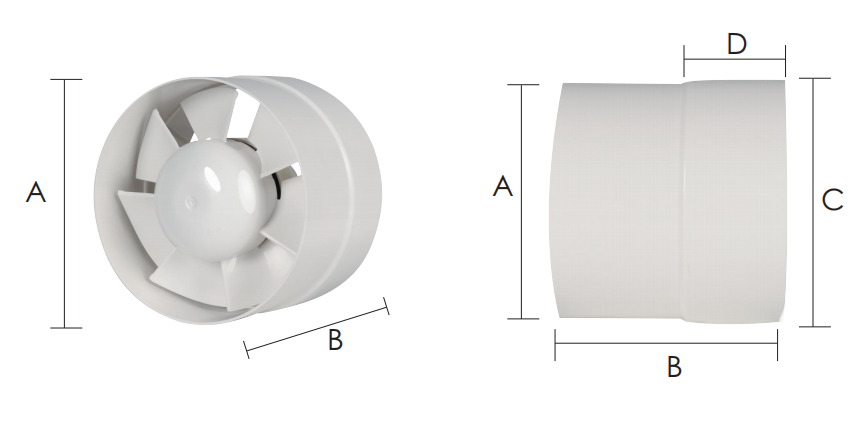

PRODUCT SIZE (unit: mm)
| Model | A | B | C | D |
|---|---|---|---|---|
| APJ-100(4") | 98 | 82 | 103 | 32 |
| APJ-125(5") | 123 | 87 | 130 | 35 |
| APJ-150(6") | 145 | 106 | 154 | 50 |
Parameter table:
| Model | Voltage (V/Hz) |
Power (W) |
Airflow (m³/h) |
Noise (dB) |
|---|---|---|---|---|
| APJ-100(4") | 220/50 | 20 | 100 | 30 |
| APJ-125(5") | 220/50 | 20 | 135 | 32 |
| APJ-150(6") | 220/50 | 40 | 195 | 35 |
Applications
HVAC Systems – Enhances airflow in heating, ventilation, and air conditioning ducts.
Bathroom & Kitchen Ventilation – Removes moisture, odors, and smoke.
Grow Rooms & Greenhouses – Maintains fresh air circulation for healthy plant growth.
Commercial Spaces – Improves air quality in offices, shops, and small warehouses.
Why Choose the APJ Inline Series?
Whether you are a business, distributor, or individual for home use, the APJ Inline series provides reliable performance, easy installation, and great flexibility, making it an ideal choice for your ventilation product line.
