In-Line Series 2 Ways
- High Efficiency: Equipped with a high-efficiency motor and optimized aerodynamic design, the unit delivers powerful airflow with reduced energy consumption. The centrifugal impeller ensures stable performance, low operating costs, and extended service life.
- Durable Construction: Full metal housing made from premium galvanized steel provides superior strength and corrosion resistance. The integrated casing design resists deformation, ensuring long-term reliability even under continuous operation.
- Flexible Configuration: Available in multiple models and sizes, the series can be adapted to a variety of ducting systems. It can work individually or in combination with other fans to meet different ventilation requirements.
- Long-Distance Air Delivery: Designed with strong static pressure capability, the fan can effectively deliver air over long distances, making it ideal for complex ductwork layouts and large-scale ventilation projects.

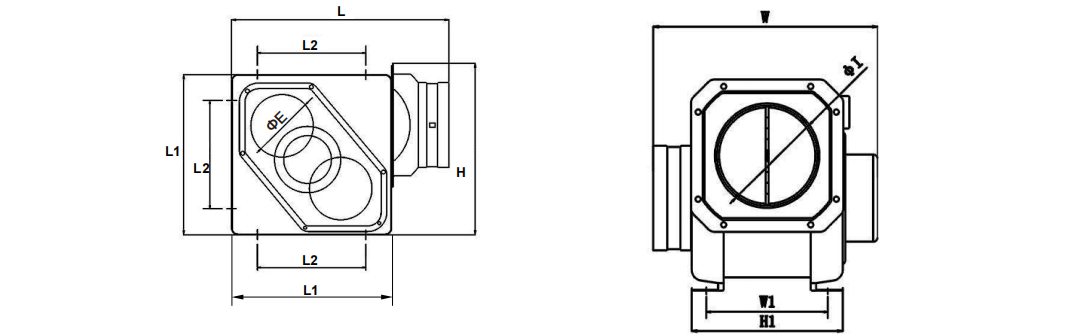

Product Size (Unit: mm)
| Model | L | L1 | L2 | ΦE | W | W1 | H | H1 | ΦI |
|---|---|---|---|---|---|---|---|---|---|
| DPT10-11(1T2) | 580 | 403 | 300 | 75 | 400 | 437 | 199 | 118 | 98 |
| DPT10-11F(1T2) | 551 | 403 | 300 | 75 | 400 | 437 | 199 | 118 | 98 |
| DPT10-34(1T2) | 551 | 403 | 300 | 100 | 400 | 437 | 250 | 157 | 150 |
Parameter table:
| Model | Voltage (V/Hz) |
Speed | Power (W) |
Airflow (m³/h) |
Static Pressure (Pa) |
Noise (dB) |
Duct Diameter Φ(mm) |
|---|---|---|---|---|---|---|---|
| DPT10-11(1T2) | 220-50 | H | 23 | 160 | 75 | 38 | 100 |
| DPT10-11F(1T2) | 220-50 | H | 30 | 200 | 250 | 43 | 100 |
| DPT10-34(1T2) | 220-50 | H | 42 | 400 | 155 | 52 | 150 |

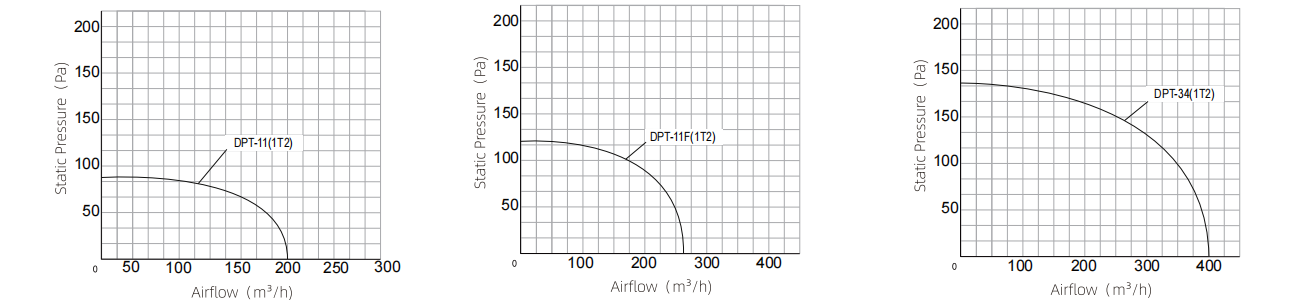

Curver:
Wide-Ranging Applications
-
Bathroom ventilation
-
Shower room ventilation
-
Fresh air supply for offices
-
Air circulation in cinemas or home theaters
-
Other residential or commercial spaces requiring two-point simultaneous exhaust/supply
Technical Advantages
-
Voltage: 220-50V / 50Hz
-
Airflow: 160–400 m³/h
-
Static Pressure: 75-250 Pa
-
Noise Level: 38–52 dB
