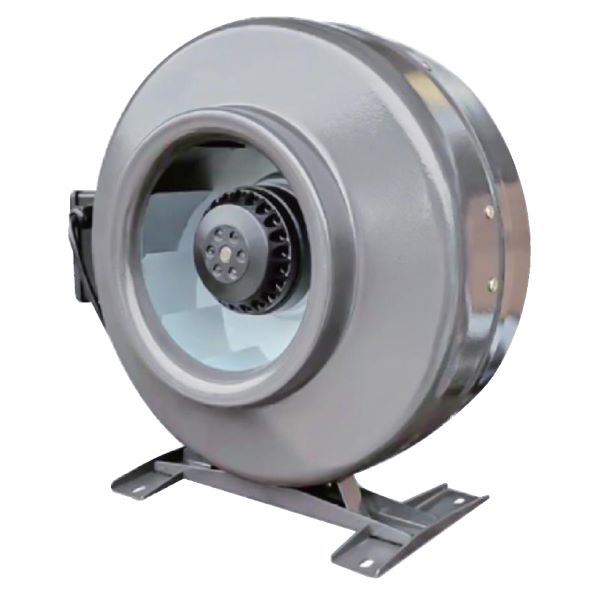

Centrifugal Inline Series

With a centrifugal impeller design, it provides outstanding air pressure and airflow for long duct systems. Its compact, robust structure and energy-efficient operation make it highly suitable for commercial and industrial ventilation applications.
High Efficiency & Low Energy Consumption – Optimized centrifugal impeller ensures strong airflow with reduced power usage.
Durable Construction – Galvanized steel housing with anti-corrosion coating for extended service life.
Low noise performance - The balanced impeller reduces vibration and noise, resulting in low noise levels. Additionally, the motor is equipped with overheat protection.
Wide Range of Models – Multiple sizes and specifications to meet diverse airflow and pressure requirements.

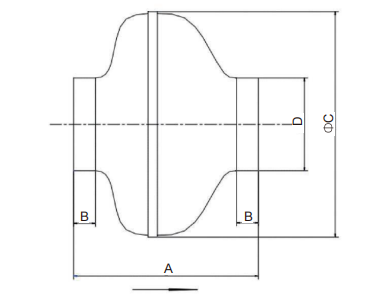

Model	A	B	C	ΦD
DJT10-25B	195	30	237	98
DJT12-35B	195	30	237	123
DJT15-45B	238	30	326	148
DJT16-45B	240	30	326	158
DJT20-46B	224	30	326	198
DJT25-66B	224	30	326	248
DJT31-66B	240	30	396	313

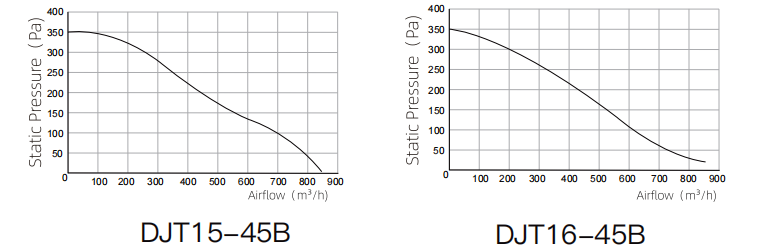

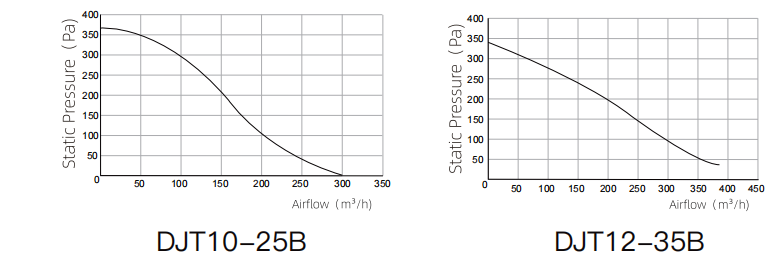

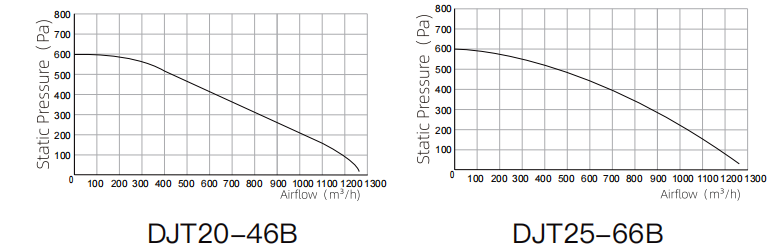

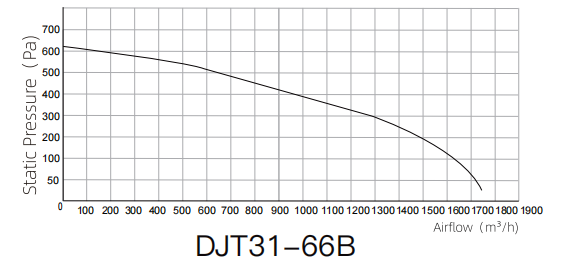

Model	Voltage (V/Hz)	Power (W)	Airflow (m³/h)	Static Pressure (Pa)	Noise (dB)	Duct Diameter (mm)	Applicable Area (m³)	Packing Size (cm)	N.W (Kg)
DJT10-25B	220-240	61	300	377	62	100	12-16	31×31×25	3.5
DJT12-35B	220-240	62	385	339	61	125	16-21	31×31×25	3.5
DJT15-45B	220-240	88	700	399	66	150	29-38	40×40×29	5
DJT16-45B	220-240	91	760	352	67	160	31-42	40×40×29	5
DJT20-46B	220-240	168	1165	594	70	200	48-64	40×40×29	5.8
DJT25-66B	220-240	185	1255	596	70	250	52-69	40×40×29	5.9
DJT31-66B	220-240	223	1740	720	76	315	72-96	46×43.5×32	7
