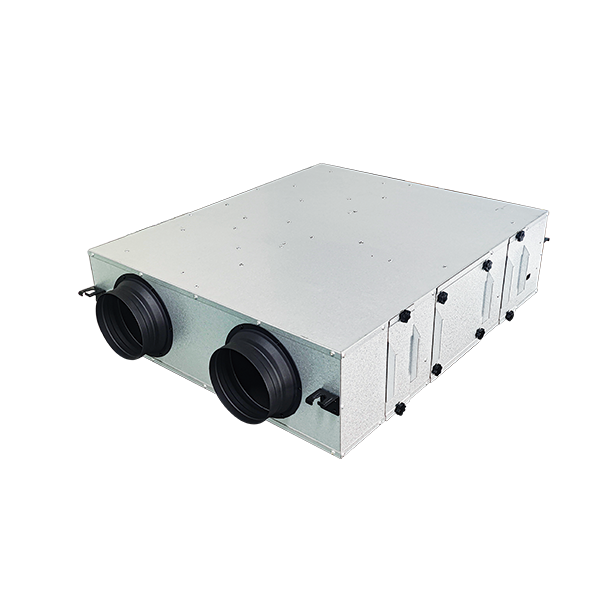

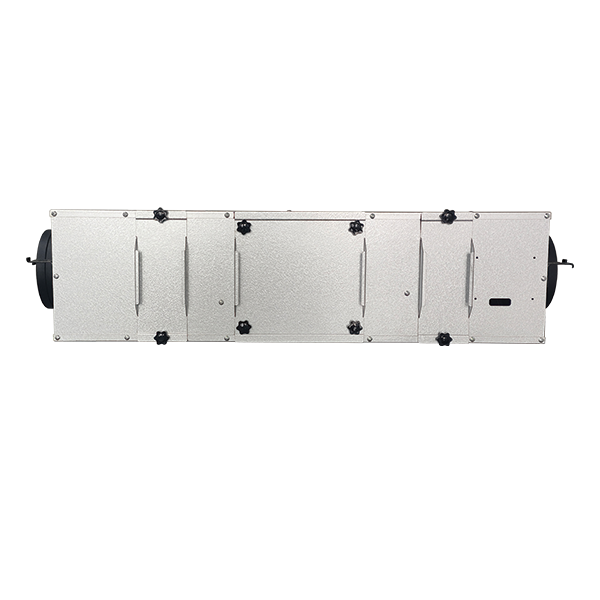

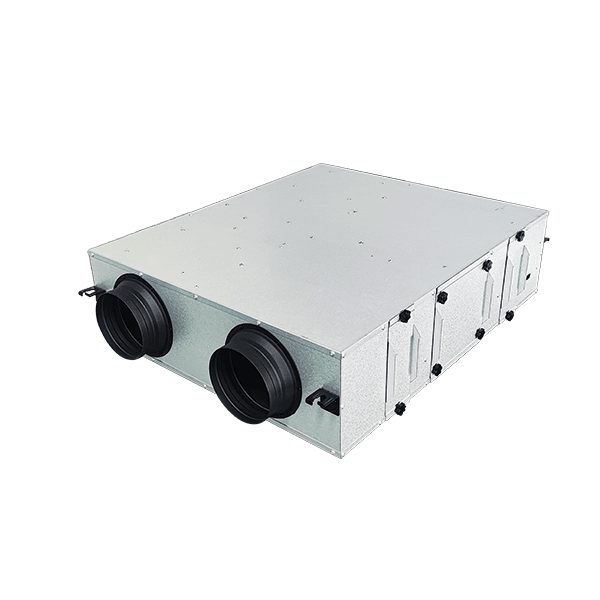

System Overview

EC Energy Recovery Ventilator delivers balanced whole-house ventilation for residential and light commercial projects: it supplies fresh outdoor air while exhausting stale indoor air, and the heat recovery core transfers energy between the two streams to reduce heating and cooling loss.

The EC motor provides variable-speed control, which keeps operation efficient and quieter across partial-load conditions. With models ranging from 90~180 m³/h up to 480~800 m³/h airflow, the series covers compact homes through larger whole-house and project installations.

Core Engineering Features

Designed for dependable whole-house recovery ventilation with efficient motor control, recoverable thermal energy and simple installation.

EC MOTOR

Variable-speed control

EC motor with variable speed adjusts airflow to demand, lowering power use and noise during partial-load operation.

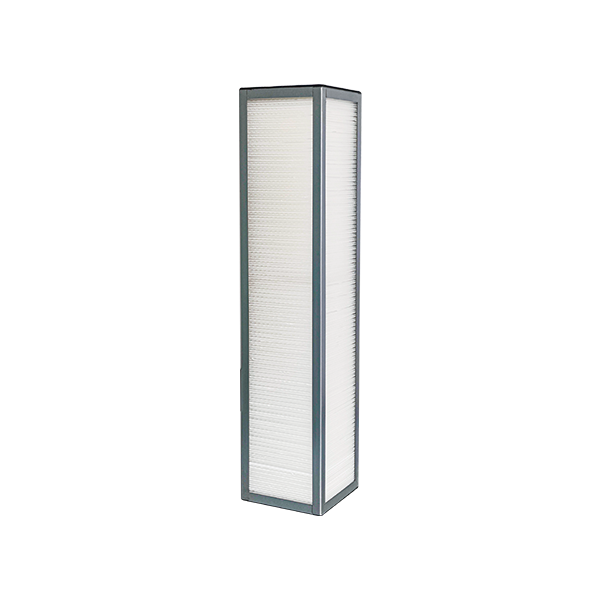

HEAT RECOVERY

Recovery core

Heat exchange rates up to 82% in heating mode help keep indoor comfort stable while reducing energy loss.

AIR QUALITY

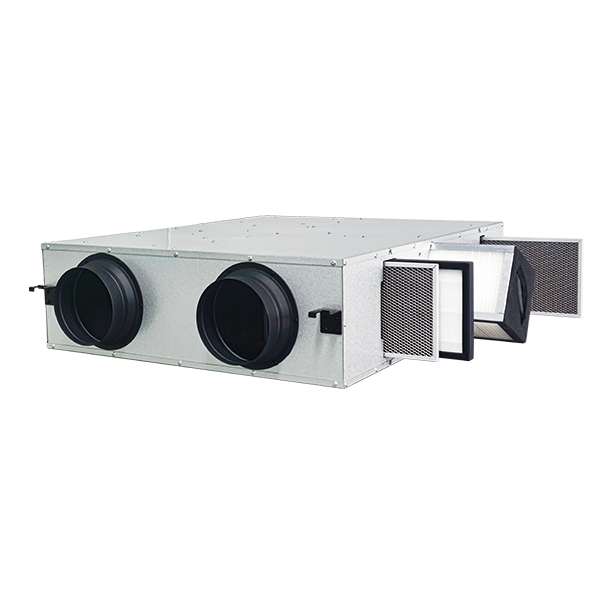

Washable filter system

Washable or replaceable filters block dust and pollutants while the unit runs continuous fresh-air supply.

QUIET RUNNING

Low-noise operation

31–41 dB noise range across the model line supports residential and low-noise project environments.

FLEXIBLE MOUNTING

Wall or ceiling mount

Compact unit size with straightforward installation and wiring for retrofit and new-build projects.

MODEL RANGE

90–800 m³/h coverage

Six models from CHQR-180EC to CHQR-800EC with Ø100–Ø200 mm duct options for different project layouts.

Technical Specifications

Dimension Table (unit: mm)

Model	A	B	C	D	E	F	G	H	I	J	K
CHQR – 180EC	856	750	95	12	305	536	597	186	305	536	582
CHQR – 350EC	894	780	145	12	330	618	665	208	330	618	665
CHQR – 450EC	984	780	145	21	330	618	665	208	330	618	665
CHQR – 550EC	894	780	145	12	330	618	665	208	330	618	665
CHQR – 600EC	1096	985	195	12	438	776	822	272	438	776	822
CHQR – 800EC	1096	985	195	12	438	776	822	272	438	776	822

Parameter Table

Model	Voltage (V/Hz)	Airflow (m³/h)	Static Pressure (Pa)	Power (W)	Heat Exchange Rate (%) [Cooling/Heating]	Enthalpy Exchange Rate (%) [Cooling/Heating]	Noise (dB)	Duct Size (mm)
CHQR – 180EC	180V~240/50/60	90~180	115	10~46	60 / 79	60 / 71	31	100
CHQR – 350EC	180V~240/50/60	190~350	122	13~56	61 / 79	60 / 69	33	150
CHQR – 450EC	180V~240/50/60	220~450	146	15~88	60 / 78	60 / 70	35	150
CHQR – 550EC	180V~240/50/60	225~550	158	15~110	58 / 80	58 / 68	38	150
CHQR – 600EC	180V~240/50/60	385~650	197	33~190	58 / 82	58 / 68	40	200
CHQR – 800EC	180V~240/50/60	480~800	239	45~260	58 / 82	58 / 67	41	200

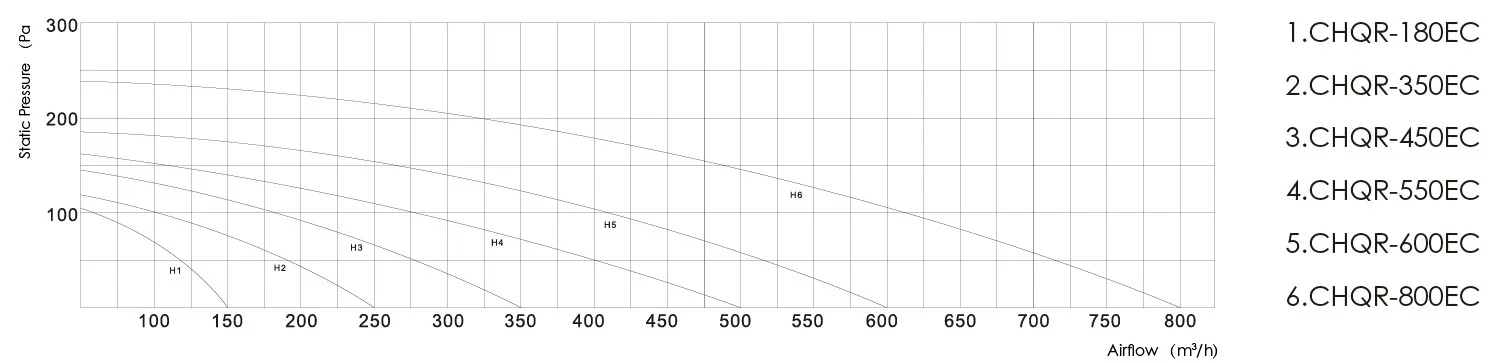

Performance Curves

EC series airflow and static-pressure performance can be reviewed visually before model selection.

Target Applications

Whole-house recovery ventilation for spaces that need continuous fresh air without wasting thermal energy.

Homes & Apartments

Balanced fresh-air delivery for houses and apartments that want stable indoor comfort with less energy loss.

Light Commercial

Offices, clinics, classrooms and project spaces that need dependable recovery ventilation without a large ducted system.

Retrofit & Projects

Wall- or ceiling-mount units suit renovation projects and repeat B2B supply programs with configurable model selection.

Quality Assurance

Project supply is checked against structure, airflow and noise targets before release.

Heat-Exchanger Sealing

Core sealing and airflow path consistency checked against published project specifications.

EC Motor Performance

Motor load and efficiency reviewed for stable long-hour operation.

Airflow Balance

Supply and exhaust airflow balance verified for whole-house deployment.

Noise Verification

Published dB targets checked against factory data before release.

Certifications & Compliance

ISO 9001.WeDriveERV IEC TEST REPORTKCQR ERP 150 350 500

OEM/ODM & Project Support

KCVENTS supports OEM/ODM services, private-label supply, regional plug and voltage options, catalog documentation and warranty support for qualified project and distributor orders.

Warranty and service terms are confirmed according to the final order agreement.

FAQ

What models are available in the EC series?

The series covers CHQR-180EC, CHQR-350EC, CHQR-450EC, CHQR-550EC, CHQR-600EC and CHQR-800EC, with airflow from 90~180 m³/h up to 480~800 m³/h.

What is the maximum heat recovery efficiency?

Heat exchange rate reaches up to 82% in heating mode and 61% in cooling mode across the model range; duct size options are Ø100 mm, Ø150 mm and Ø200 mm.

What voltage does the unit support?

All models accept 180V~240V at 50/60 Hz, which covers most residential and light commercial mains supplies.

Can the filters be cleaned?

Yes. The washable or replaceable filter system is designed for routine maintenance without special tools.

Does KCVENTS support OEM/ODM orders for this product?

Yes. OEM branding, control options, documentation and regional voltage configurations can be reviewed for qualified project and distributor orders.
